IO extender in the back of the Gatekeeper-X
In order to connect a Gatekeeper-X with the CU42E0 an AVUTEC IO extender is necessary.
The IO extender has to be placed in the back of the Gatekeeper.

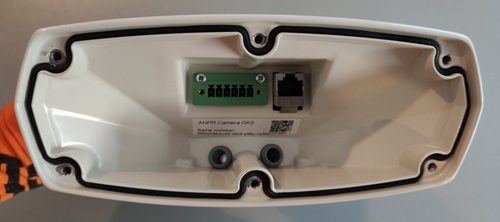

Gatekeeper-X junction box with green connector for the IO extender
Wiring diagram

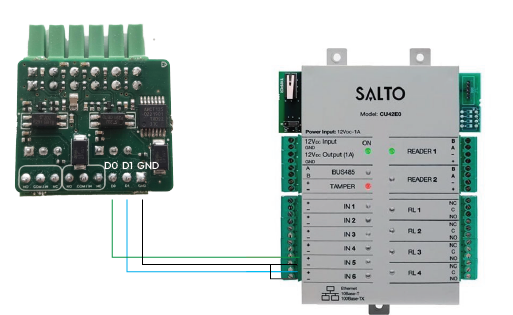

Wiring diagram IO extender and CU42E0
The IO extender is wired to the Salto CU42E0 control unit as follows
IO extender |
Salto CU42E0 |
|---|---|
Data 0 (D0) |
positive terminal on input 5 |
Data 1 (D1) |
positive terminal on input 6 |
GND |
negative terminal on input 5 |
GND |
negative terminal on input 6 |
